Food industrie

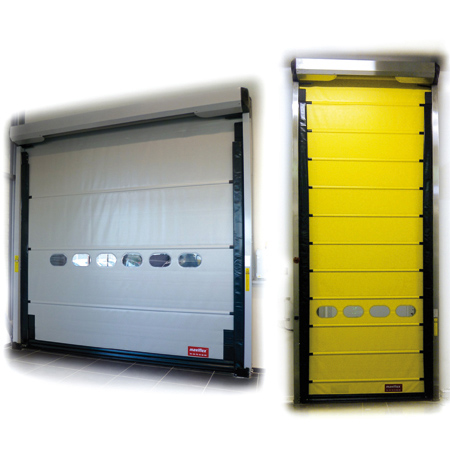

The new SIDIROLL door is a High speed door with condensed Maviflex’s technologies.
This compact and quiet door for food industry and industry, fits all your indoor environments.
Furthermore, we can tailor-make your door, to maximize your budget, according to your specifications.
The new SIDROLL door will delight you with its exceptional reliability.
It is of course equipped with the patented deformable flexible guideway.
Sold on every continent, this system guarantees a permanent feature of the door.
To meet the requirements of reaction to fire, the curtain is a M2 (NFP92.507).
Equipped with active and passive safety optimum SIDROLL, the New SIDROLL door complies with the Standard EN 13241-1.
In the current trend, especially the door fabric is completely recyclable through the system Texloop.
- EN 13241-1 safety Standard – EC
- Opening: 1 m/s – closing: 0.5 m/s
- Self supporting mill galvanised steel frame with polyester powder coated finish
- Structure with Flexible track – Patent
- Unique Flexible track for Break-a-way Curtain with Automatic Reinsertion System without human intervention
- Structure with Flexible track – Patent
- Unique Flexible track for Break-a-way Curtain with Automatic Reinsertion System without human intervention
- Soft bottom edge technology – no more trouble with rigid bottom edge electronics
- Hood/top roll and motor cover
- Jamb inserted control panel
- Curtain 832 g/m² reinforced by composite tube
- Option : Double skin curtain with insulated foam for chilled room
- Option: battery back-up for automatic opening (power supply 230 V single phase for the door)
- Maximum clear opening dimensions in mm : W 4000 x H 4000
- Automatic door >> High speed door for Industrial area, supermarket, food industry, chilled room.
